Dyno Results, In-house
Raptor 700
Raptor 700
Raptor 700
Raptor 700 Dyno Results:
686cc
2019 Year
All Stock as it came from the showroom
Best 44hp/40lbs-tq (STD CF), 43hp/39lbs-tq (SAE CF)
Raptor 700
Raptor 700
Raptor 700
Raptor 700 Dyno Results:
686cc
Stroke: 84mm(Stock)
Bore: 102mm (Stock)
Porting: Stock
Valve Size: Stock
Camshaft: HotCams Stage 3 Compression: 10:1 (Stock piston)
Intake: Stock with UNI filter kit
Throttle body: Stock
Injector: Stock
Exhaust: Empire Industries Duals short cans (Y-Pipe for Single exhaust port head)
Fuel: 93 Octane pump
Best 58Hp 46lbs-tq (STD CF), 56/45 (SAE CF)
Raptor 700
Raptor 700
Raptor 700

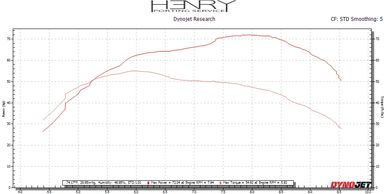

Raptor 700 Dyno Results:
686cc
Stroke: 84mm(Stock)
Bore: 102mm (Stock)
Porting: HPS CNC Stock Valve Port (Dual Exhaust Port head)
Valve Size: Stock
Valve Springs: Ferrea Dual
Camshaft: HPS275
Compression: 12:1 (CP)
Intake: Stock with K&N filter kit
Throttle body: +3mm (47mm)
Injector: Stock
Exhaust: Empire Industries Big Bore Dual Exhaust short cans
Fuel: 93 Octane pump
Best 72Hp 55lbs-tq (STD CF), 70/53.5 (SAE CF)
Raptor 700
More to Come!
Raptor 700
Raptor 700 Dyno Results:
727cc
Stroke: 89mm(+5mm)
Bore: 102mm (Stock)
Porting: HPS CNC Stock Valve Port (Dual Exhaust port head)
Valve Size: Stock
Camshaft: HotCams Stage 3
Compression: 11:1 (CP)
Intake: Stock with K&N filter kit
Throttle body: Stock
Injector: Stock
Exhaust: MonsterQuad Atv BB Duals short cans
Fuel: 93 Octane pump
Best 72Hp 56lbs-tq (STD CF), 70/55 (SAE CF)
More to Come!
More to Come!
More to Come!
HPS has just gotten a new DynoJet 250iX and will be adding new dyno charts as they become available!

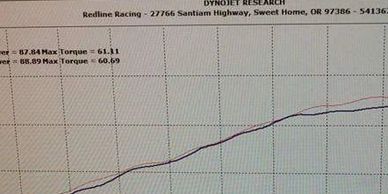

Dyno Results, 3rd party
686cc 65hp Package
686cc 65hp Package vs 734cc Race Package
686cc 65hp Package vs 734cc Race Package
Raptor 700 (Dual Port Head)
102mm bore(oem)
84mm stroke(oem)
11:1 compression
HotCam 3
HPS Stock Valve Port
OEM Transmission
E85 Fuel
686cc 65hp Package vs 734cc Race Package
686cc 65hp Package vs 734cc Race Package
686cc 65hp Package vs 734cc Race Package
Raptor 700 (Dual Port Head)
Brown Lines = 65hp Package
Red Lines = 734cc High Output Package
High Output Package:
14:1 Diamond Piston 105.5mm Bore
HPS302b Billet Camshaft
+2mm Stainless Ferrea Valves
HPS Race Port
OEM Transmission
VP110 fuel

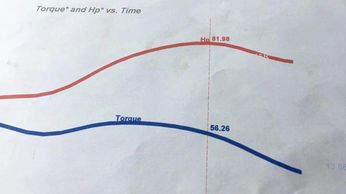

686cc Cross Country Race Engine
686cc 65hp Package vs 734cc Race Package
686cc Cross Country Race Engine
Raptor 700 (Dual Port Head)
102mm Bore, 14:1 CP Piston
84mm Stroke, Crankworks Built Crank
Stock Valves
HPS Stock Valve Race port
Web 290 Grind Camshaft, Billet
OEM Transmission
VP110

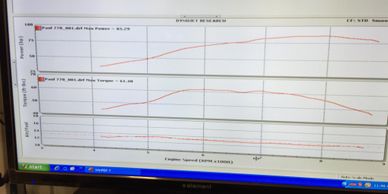

778cc Race Engine
686cc Competition Package
686cc Cross Country Race Engine
Raptor 700 (Dual Port Head)
105.5mm bore, 12.5:1 Compression
89mm Stroke
HPS Race Port
+2mm Stainless Ferrea Valves
HPS302B Camshaft
OEM Transmission
93oct Fuel

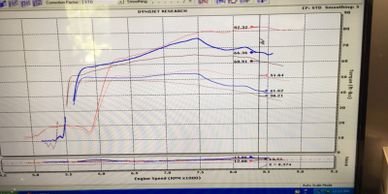

770cc 85hp Package
686cc Competition Package
686cc Competition Package
Raptor 700 (Dual Port Head)
105.5mm Bore, 14:1 Diamond Piston
88mm Crankworks Built Crank
HPS Race Port
+2mm Stainless Ferrea Valves
HPS302b Camshaft
OEM Transmission
E85 Fuel

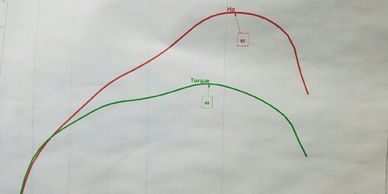

686cc Competition Package
686cc Competition Package
686cc Competition Package
Raptor 700 (Dual Port Head)
102mm bore, 14:1 CP Piston
84mm Crankworks Built Crank
HPS Competion Head Porting
+2+1mm Ferrea Stainless Valves
HPS302b Camshaft
OEM Transmission
M5 Fuel
686cc Competition Package
686cc Competition Package
686cc Competition Package
Raptor 700 (Dual Port Head)
102mm bore, 14:1 CP Piston
84mm Crankworks Built Crank
HPS Competion Head Porting
+2+1mm Ferrea Stainless Valves HPS302b Camshaft
OEM Transmission w/o reverse
M5 Fuel

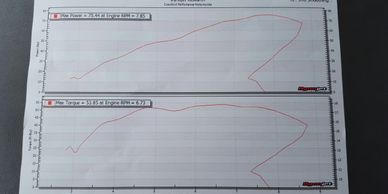

770cc Race Engine
686cc Competition Package
686cc Competition Package
Raptor 700 (Dual Port Head)
105.5mm Bore, 15.3:1 Diamond Piston 88mm Crankworks Built Crank
HPS Race Port
+2mm Stainless Ferrea Valves
HPS302b Camshaft
OEM Transmission
M5 Fuel

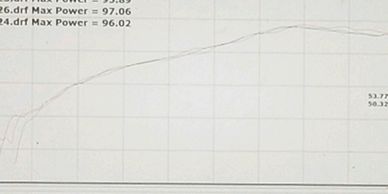

770cc Competion Package
686cc Competition Package
770cc Competion Package
Raptor 700 (Dual Port Head)
105.5mm Bore, 15.3:1 Diamond Piston 88mm Crankworks Built Crank
HPS Competition Port
+2mm Stainless Ferrea Valves
HPS302b Camshaft
2-5 Transmission w/smoothshift
M5 Fuel
