Tech Section

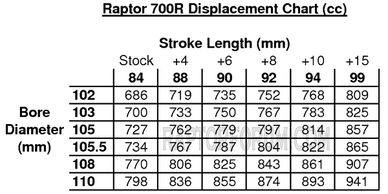

Raptor 700 Common engine build size chart


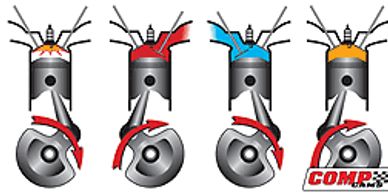

Common Formulas for Stroker engines



•Displacement in cubic inches = Bore x Bore x Stroke x Number of Cylinders x .7854

•Assembly Height = (Stroke / 2) + Rod Length + Piston compression height

 •Rod Ratio = Rod Length / Stroke

 •Mean Piston Speed (feet per second) = (2 x Stroke x RPM / 60) / 12


EngineLabs Artical: http://www.enginelabs.com/engine-tech/stroker-engines-the-long-and-short-of-connecting-rod-length/

Raptor 700 OEM Specifications


Engine Type  686cc liquid-cooled SOHC 4-stroke; 4 valves

Bore x Stroke  102.0mm x 84.0mm    Compression Ratio  10.0:1  (9.2:1  2006-2014)

 Fuel Delivery : Yamaha Fuel Injection (YFI), 44mm

Ignition  TCI: Transistor Controlled Ignition    Starting System  Electric

Transmission  5-speed w/reverse; wet multiplate clutch


L x W x H  72.6 in x 45.5 in x 43.9 in

Seat Height  32.7 in

Wheelbase  50.4 in

Maximum Ground Clearance  9.5 in    Fuel Capacity  2.9 gal

Wet Weight***  422 lb
